The series covers the Pro line (45.6V HV, 44.4V, 51.8V, and 53.2V platforms) and the 3.5/4.0 lines (53.2V HV and 68.4V HV platforms) for larger agricultural aircraft. Estimated endurance is measured under 140A continuous discharge.
Pro Series
| Battery Model | Energy | Size (±5mm) | Weight (±100g) | Estimated Endurance (140A Continuous Discharge) |
|---|---|---|---|---|
| PRO 25C 16000mAh HV 45.6V 12S1P | 729.6Wh | 224×90×164mm | 4550g | 17 mins |
| PRO 25C 22000mAh HV 45.6V 12S1P | 1003.2Wh | 234×116×172mm | 5750g | 23 mins |
| PRO 25C 22000mAh HV 53.2V 14S1P | 1170.4Wh | 238×117×174mm | 7200g | 23 mins |
| PRO 25C 22000mAh 44.4V 12S1P | 976.8Wh | 238×117×174mm | 6300g | 23 mins |
| PRO 25C 22000mAh 51.8V 14S1P | 1139.6Wh | 238×117×174mm | 7350g | 23 mins |
3.5 / 4.0 Series
| Battery Model | Energy | Dimension (±5mm) T×W×L | Weight (±300g) | Endurance (140A Continuous Discharge) |
|---|---|---|---|---|
| UFOPOWER 3.5 25C 20000mAh HV 53.2V 14S1P | 1064Wh | 103×251×261mm | 7900g | 7.7 mins |
| UFOPOWER 3.5 35C 30000mAh HV 53.2V 14S1P | 1596Wh | 145.5×251×333.5mm | 11400g | 13.5 mins |
| UFOPOWER 4.0 25C 20000mAh HV 53.2V 14S1P | 1064Wh | 92.5×237×261mm | 7900g | 7.7 mins |
| UFOPOWER 4.0 35C 30000mAh HV 53.2V 14S1P | 1596Wh | 92.5×237×333.5mm | 11400g | 13.5 mins |
| UFOPOWER 4.0 35C 30000mAh HV 68.4V 18S1P | 2052Wh | 120×267×330mm | 14300g | 13.5 mins |
| UFOPOWER 4.0 35C 35000mAh HV 68.4V 18S1P | 2394Wh | 127×274×371mm | 16500g | – |
Key Features
The series supports 5C ultra-fast charging for rapid field turnaround during peak spraying seasons, and a built-in BMS with real-time SOC monitoring gives operators accurate remaining-capacity data in the cockpit. DroneCAN protocol compatibility enables seamless integration with modern flight controllers, while high waterproof performance (IP rating) and optimized thermal management keep packs reliable in dusty fields and hot conditions. An optional Mosfet modular configuration is available for enhanced current handling.
Applications

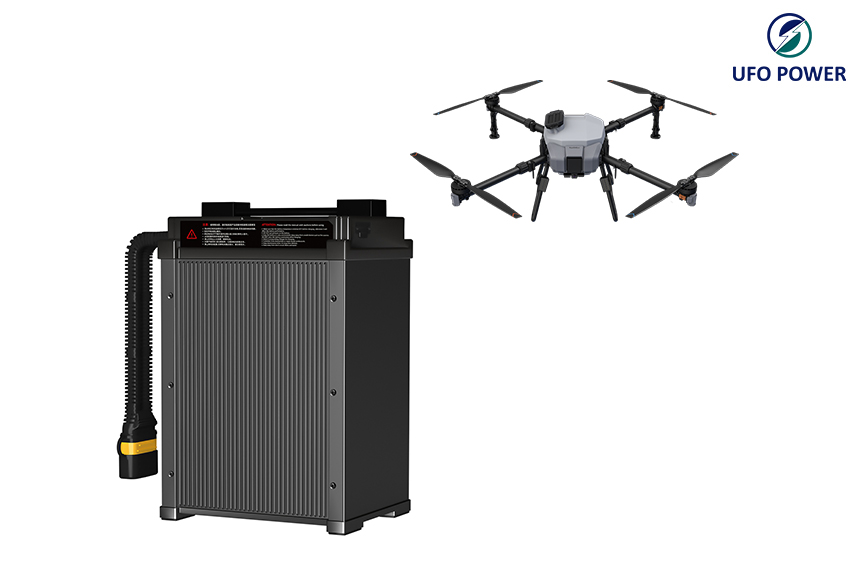

The series is ideal for agricultural spraying drones (10L–70L class), seeding and spreading drones, and field mapping UAVs. With real-time data insights via SOC monitoring, the packs support precision agriculture workflows – from smallholdings to thousand-acre estates – and are trusted by agricultural drone manufacturers for industrial-grade performance.
5C charging and intelligent monitoring keep spraying fleets flying through the busiest season.
5C ultra-fast charging minimizes downtime between sorties
Built-in BMS with real-time SOC monitoring for accurate field data
DroneCAN protocol compatibility for flight controller integration
Optional Mosfet modular configuration for high-current applications
Built for the harsh realities of farmland – dust, water, heat, and heavy discharge loads.
High waterproof performance (IP rating) for field environments
Optimized thermal management under continuous high discharge
Rugged construction with long cycle life for lower total ownership costs
High energy density reduces waste and keeps payload practical
From 729.6Wh to 2394Wh across multiple voltage platforms, the series scales with your aircraft line.
Energy from 729.6Wh to 2394Wh for 10L–70L agricultural drones
12S, 14S, and 18S platforms (44.4V to 68.4V) for different aircraft designs
Custom UAV battery design and OEM/ODM manufacturing
Sample and mass production available for agricultural drone OEMs
