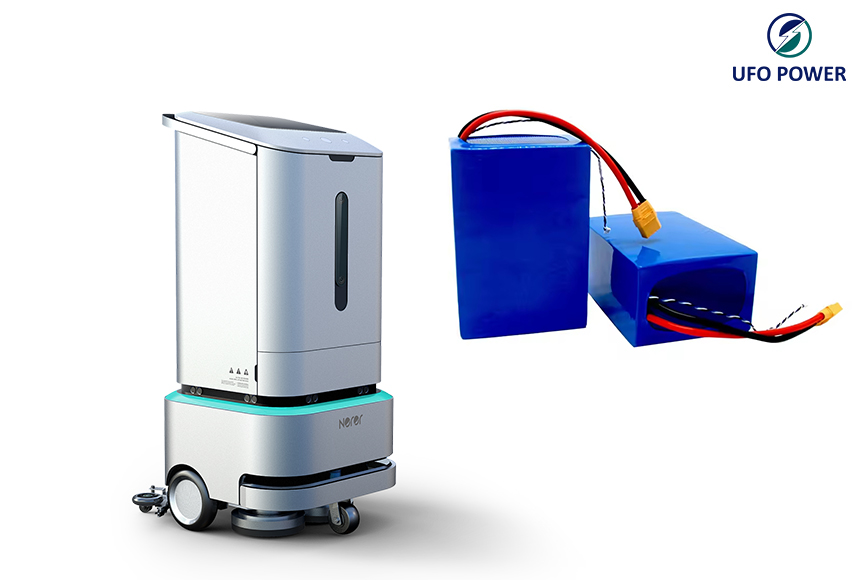

The UFOPOWER AGV/Robot LiFePO4 battery pack is a sealed, maintenance-free solution with pollution-free operation, long cycle life, compact modular integration and easy series or parallel connection. Available in two standard configurations:
| Parameter | UFO-P48100Y-6 | UFO-48V76.8AH |
|---|---|---|
| Model | UFO-P48100Y-6 | UFO-48V76.8AH |
| Nominal Voltage | 48V | 48V |
| Rated Capacity | 100Ah | 76.8Ah |
| Standard Discharge Current | – | 70A |
| Standard Charge Current | – | – |
| Operation Temperature Range | Charge: 0–50°C Discharge: -20–60°C | Charge: 0–50°C Discharge: -20–60°C |
| Internal Impedance | ≤50mΩ | ≤50mΩ |
| Volumetric Energy Density | 125 Wh/L | 173.49 Wh/L |
| Gravimetric Energy Density | 81 Wh/kg | 140 Wh/kg |
| Dimension | 200 x 370 x 551.0 mm | 397 x 282.8 x 172.5 mm |
| Weight | 63 kg | 24 kg |
| Protection Level | IP65 | IP65 |
Both models feature an intelligent battery management system with built-in cell monitoring and balancing, real-time monitoring, multi-level safety design and Grade A cells. The BMS communicates with the vehicle controller over CAN, and battery data can be read directly from the touch LCD without a PC connection.
Safety is engineered into every UFOPOWER AGV battery. The intelligent BMS continuously monitors voltage, current and temperature; on any fault condition it triggers an alarm and sends a CAN signal to the AGV’s main controller, which can reduce power or shut down to prevent damage.
Intelligent BMS with built-in cell monitoring and balancing
Real-time monitoring and multi-level safety design
High chemical and thermal stability – no explosive gases or acid leakage
Shielded wiring and insulation resistance modules protect against electromagnetic interference and leakage
Grade A cells tested on our quality-controlled production line before shipment
UFOPOWER LiFePO4 packs are sealed units that require zero daily maintenance, eliminating water refills, acid spill, corrosion and pollution. With a 10-year battery life and more than 3,500 cycles, they deliver proven long-term savings for fleet operators.
Zero daily maintenance work and cost
Up to 10 years battery life with more than 3,500 cycles
Save up to 70% in five years compared with traditional batteries
No water injection, no acid spill, no corrosion or acidification
No explosive gas released when charging
Designed for demanding automated duty cycles, UFOPOWER AGV batteries support high charge and discharge currents and rapid charging to reduce downtime. Compact and lightweight, they increase AGV speed and runtime while the touch LCD keeps operators informed at a glance.
High charge & discharge current for demanding AGV operations
Rapid charging and opportunity charging at any time to increase running time
Light weight and small volume for higher speed and longer range
Touch LCD display to read battery data and operate without a PC
Compact modular integration with easy series or parallel connection; 24V / 36V / 48V systems available
