Built on a 83.2V nominal LiFePO4 system with integrated smart BMS (overcharge, over-discharge, temperature & short-circuit protection), the UFO80560 delivers up to 350A continuous and 700A peak discharge for heavy lifting and continuous operation.
| Parameter | UFO80560 |
|---|---|
| Nominal Voltage | 83.2V |
| Rated Capacity | 560Ah |
| Energy | 46592Wh |
| Dimensions (L×W×H) | 1025×855×784mm |
| Weight | ~400KG |
| Charge Voltage | 94.9V |
| Cut-off Voltage | 65V |
| Charge Current | 200A |
| Continuous Discharge | 350A |
| Peak Discharge | 700A |
| Cycle Life | >4000 cycles |
| BMS | Built-in |
Note: The above is a standard lineup example. UFOPOWER offers extensive custom engineering – voltage & capacity from 24V to 80V+ (up to 1000Ah+), physical dimensions to fit your equipment, communication protocols compatible with most BMS systems, special features (low-temp heating, GPS tracking, remote monitoring), and customized connector types. Additional 80V configurations (e.g. 690Ah) are available on request.

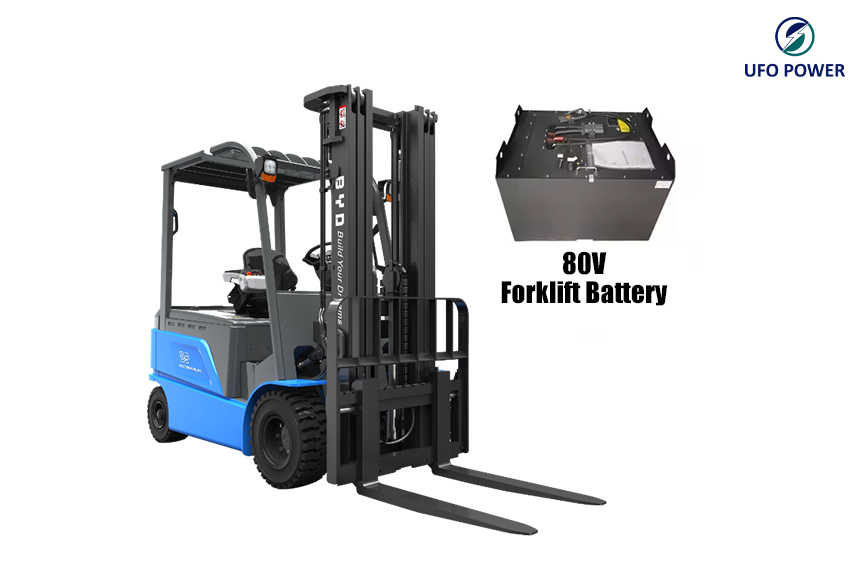

Engineered for the most demanding material handling equipment, the 80V system delivers high continuous and peak discharge currents for heavy lifting and continuous operation – with up to 4000+ charge cycles for long-term cost savings.
High-rate output: 350A continuous / 700A peak discharge
Up to 4000 cycles – 3–5x longer lifespan than traditional lead-acid batteries
Stable voltage output throughout the discharge cycle for consistent performance to the end of each shift
10-year design life and 5-year warranty from the UFOPOWER factory
High energy capacity (46.6kWh) for extended runtime in heavy operations
Every UFOPOWER 80V pack is built with an integrated fireproof enclosure and a comprehensive multi-protection system, engineered for maximum safety in demanding industrial and port environments.
Integrated smart BMS: overcharge, over-discharge, temperature & short-circuit protection
Steel case with IP67-rated water and dust ingress protection
100% fireproof construction with advanced thermal management
Optional GPS real-time tracking with remote lock/unlock for fleet management
Optional cloud-based diagnostics & OTA upgrades for remote monitoring and maintenance alerts
Operating temperature range -20°C to 65°C; optional heating function for charging at freezing temperatures
Around 70% lighter than lead-acid batteries, the 80V series is easier to install and handle, and requires no watering, no acid, and no ventilation – while our factory supports fully customized lithium solutions for your exact equipment.
Lightweight & compact – reduces operational strain, energy consumption, and tire/rim wear
Maintenance-free operation – no daily maintenance, saving labor and cost
Drop-in design – fits most 80V forklift battery compartments without modification
Custom OEM/ODM: voltage, capacity, dimensions, BMS communication protocols, and connectors tailored to your specs
Made in China by UFOPOWER – automated production lines with AI-driven quality control and final product inspection
Certified: ISO9001, CE, MSDS, UN38.3, IEC62619, RoHS, plus sea & air transport safety reports
